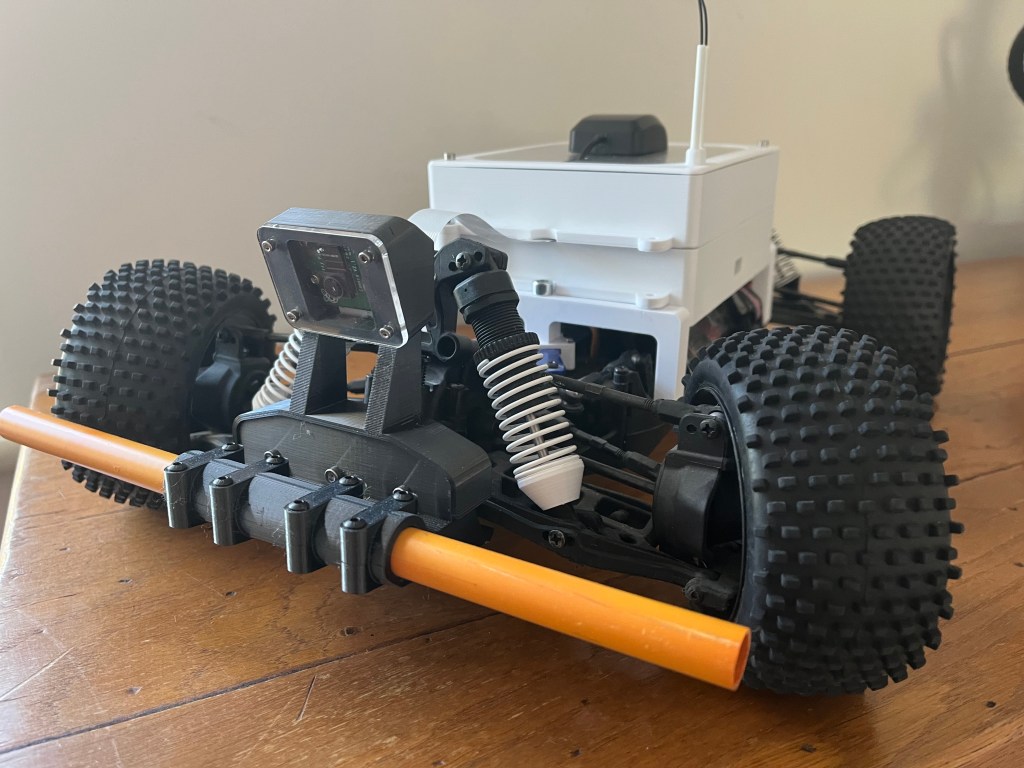

The car hardware is now largely complete, so I thought I’d share a couple of images.

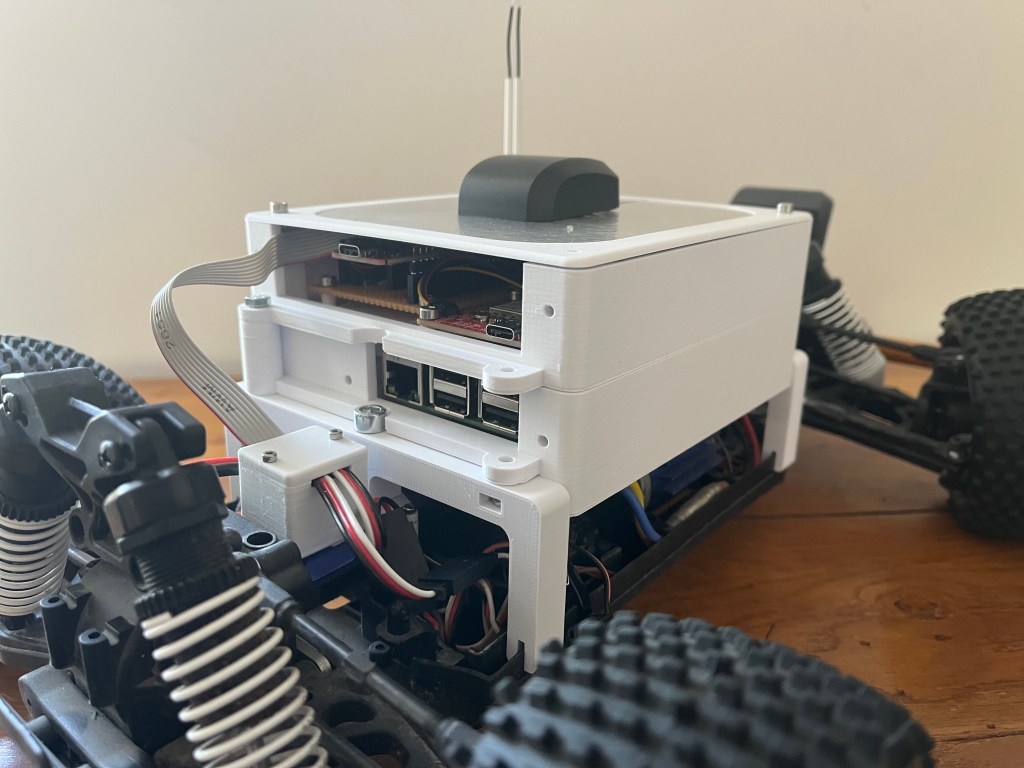

The construction has 3 decks.
- The lowest has a Raspberry Pi with power supply which connects to the front facing camera. For now, this is just collecting video data. In future, I would like the vehicle to be guided by this system, although I might replace the RPi with a Jetson Nano for that.
- The second deck has a ESP32 and RTK GNSS system. The ESP32 receives RTCM data from a laptop via an ESP-Now based link. The same link is used by the car to send telemetry data to the base station.
The ESP32 also listens to an R/C receiver. It decodes three channels: throttle, steering and a three position switch. The switch selects the mode: record (the car can be manually driven around the track with the R/C controller in this mode. As it does this, the car records a GNSS “bread-crumb” trail), stop, and autonomous (where the car follows the previously defined trail). - The top layer holds the GNSS antenna. The antenna sits above a foil ground plane.
Following a conversation with DonK, I plan to make it possible to adjust the height of the camera above the track. It is currently set to 120mm, but Don has suggested that 300mm is a better position. It would be nice to be able to capture data at several heights in order to compare the performance of the lane following system for different settings.
